產品參數

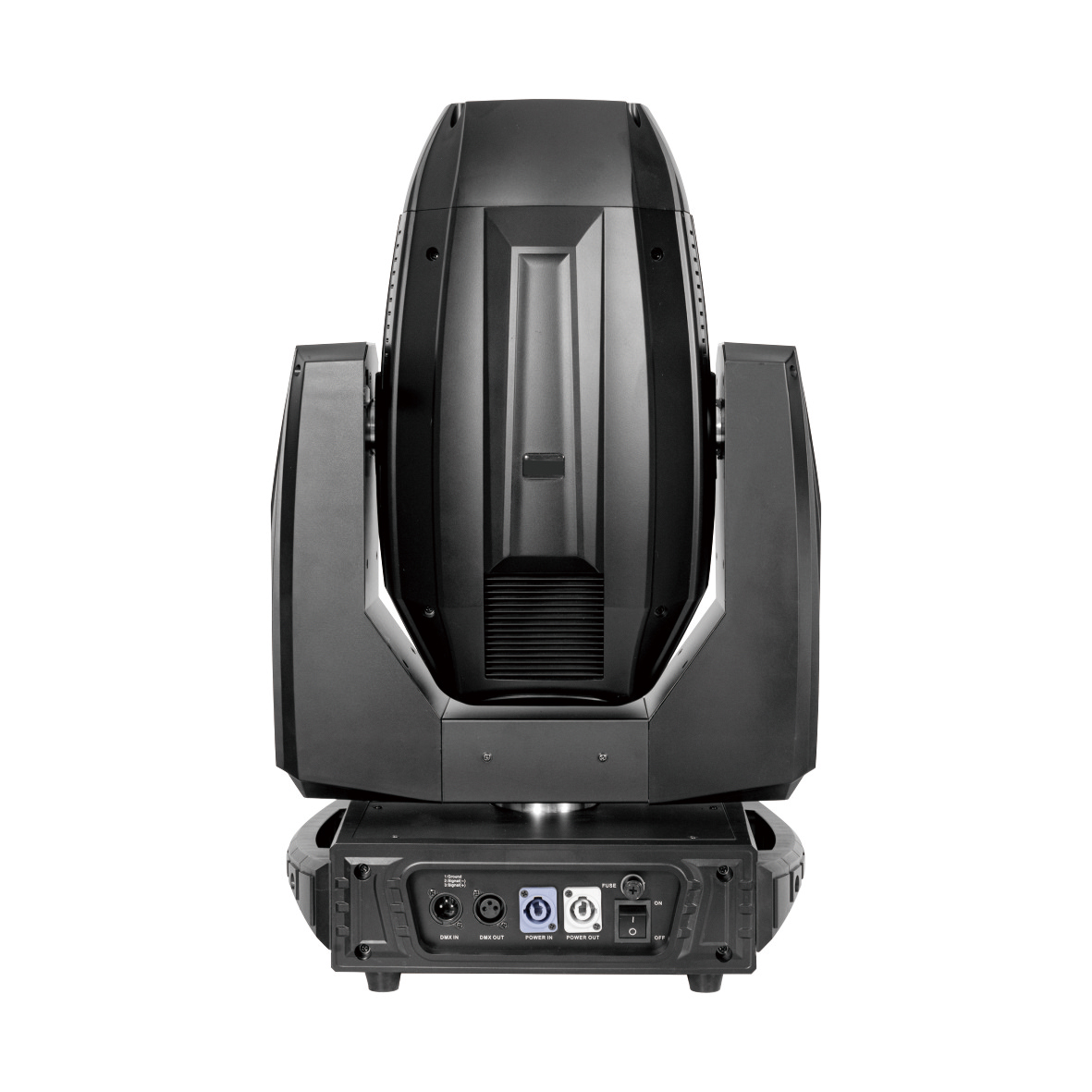

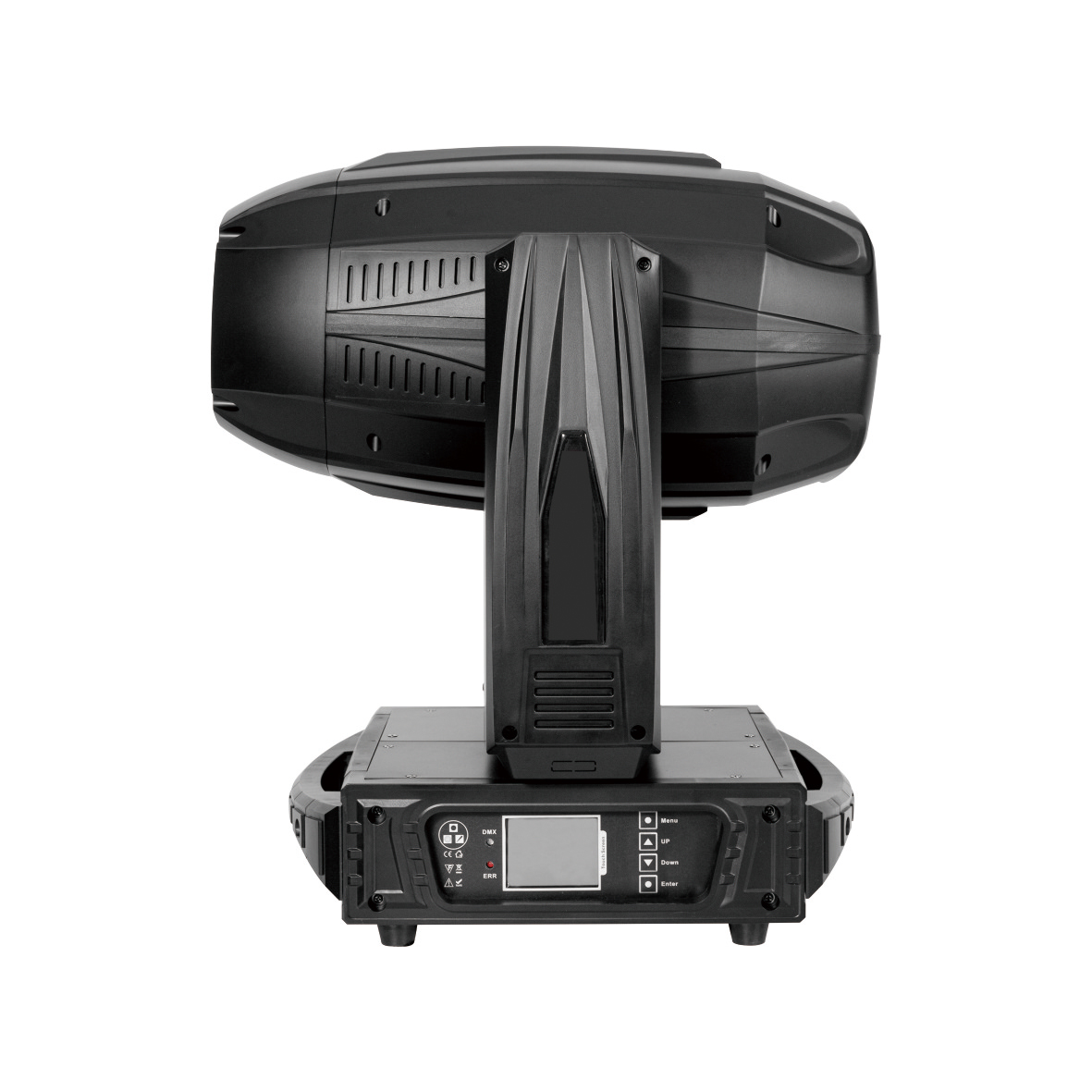

XL-380S
額定電壓：AC110V-240V,50/60HZ
光源規格：380W PHILIPS
色溫：9000K
光學：高精度玻璃光學透鏡（6層鍍膜），多級光學鏡頭組電子調焦，線性放大功能
特點：圖案，染色，光束三合一.
色盤：11個顏色片+1個白光，雙向彩虹效果，速度可調，任意定位功能
固定圖案盤：12個固定圖案片+1個白光，帶圖案抖動,單向流水，速度可調，任意定位功能。
效果圖案盤：5個圖案+白光，火焰效果,水紋效果。
旋轉圖案盤：7個可旋轉圖案片+1個白光，每個圖案具有正反旋轉，抖動及流水效果
棱鏡：一個八面旋轉棱鏡+一個十六面旋轉凌鏡，棱鏡正反向旋轉，速度可調。（雙棱鏡可疊加形成40道銳利的光束，可雙向獨立旋轉/棱鏡定位功能，棱鏡可定制）
頻閃：雙片式頻閃0.5-14次/S，具有同步、異步、隨機頻閃方式，速度可調。
霧化： 1個獨立的霧化效果，光斑柔和自然。
掃描范圍： X軸540°/2.5 S，Y軸270°/1.5 S，解析度：8Bit/16Bit。
顯示界面：采用寬屏2.8寸LCD液晶中英文顯示界面。
智能控制：水平垂直采用光電復位，當發生誤動后可自動檢索復位；三相步進電機使運動更快更平滑內置過熱保護和智能散熱系統，遠程控制燈泡開關及功率。
光束角度：Zoom /2.8-48° Spot/5- 20° Wash/ 15-65°
通道：20/24CH或者自定義通道模式。
電動對焦：光束角度2.5°-60°，雙片式調光，線性調光0-100%
水平/垂直：水平角度540°，垂直角度270°
散熱系統：內置對流風扇，帶過熱保護功能。
防護等級：IP20，可選防雨罩防護等級可高達IP44
整流器：電子整流器使產品重量更輕，亮度更強，燈泡更穩定，更環保，節能.
凈重：21KG
Rated voltage: AC110V-240V, 50/60HZ
Light source specification: 380W PHILIPS
Color temperature: 9000K
Optics: high-precision glass optical lens (6-layer coating), multi-level optical lens group electronic focusing, linear amplification function
Features: Pattern, dyeing, and beam in one
Color disc: 11 color chips+1 white light, bidirectional rainbow effect, adjustable speed, and any positioning function.
Fixed pattern disc: 12 fixed pattern pieces+1 white light, with pattern jitter, unidirectional flow, adjustable speed, and any positioning function.
Effect pattern plate: 5 patterns+white light, flame effect, and water texture effect.
Rotating pattern disc: 7 rotatable pattern pieces+1 white light, each pattern has positive and negative rotation, shaking, and flowing effects
Prism: an eight sided rotating prism+a sixteen sided rotating prism, with the prism rotating in both directions and adjustable speed. (Double prisms can be stacked to form 40 sharp beams, with bidirectional independent rotation/prism positioning function, and prisms can be customized)
Strobe: Dual chip strobe 0.5-14 times/S, with synchronous, asynchronous, and random strobe modes, and adjustable speed.
Atomization: 1 independent atomization effect, with soft and natural light spots.
Scanning range: X-axis 540 °/2.5 S, Y-axis 270 °/1.5 S, resolution: 8Bit/16Bit.
Display interface: It adopts a widescreen 2.8 inch LCD display interface in both Chinese and English.
Intelligent control: Horizontal and vertical use of photoelectric reset, which can automatically retrieve and reset in case of misoperation; Three phase stepper motor for faster and smoother movement, with built-in overheating protection and intelligent cooling system, remote control of light bulb switch and power.
Beam angle: Zoom/2.8-48 ° Spot/5-20 ° Wash/15-65 °
Channel: 20/24CH or custom channel mode.
Electric focusing: beam angle 2.5 ° -60 °, dual disc dimming, linear dimming 0-100%
Horizontal/Vertical: Horizontal angle 540 °, vertical angle 270 °
Heat dissipation system: built-in convection fan with overheating protection function.
Protection level: IP20, optional rain cover protection level can reach up to Ip44
Rectifier: Electronic rectifiers make the product lighter, brighter, more stable, more environmentally friendly, and energy-efficient
Net weight: 21KG
